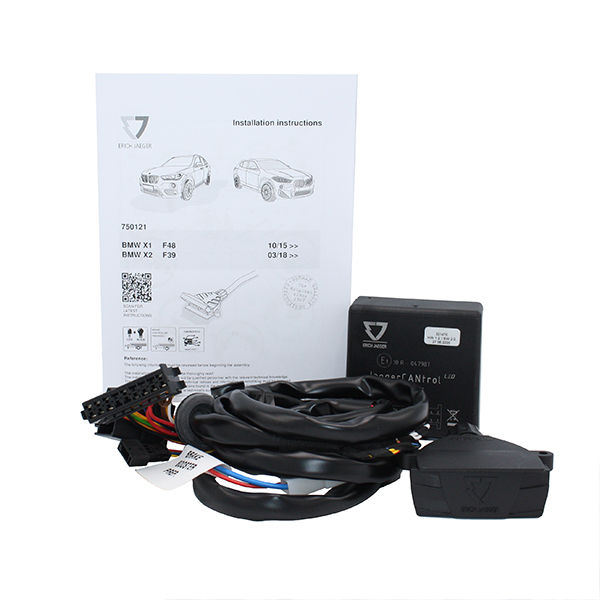

BMW Wiring Harness
X1 (F48) 10/2015-On & X2 (F39) 03/2018-On

750121



Vehicle Model Details
Vehicle Make BMW
Vehicle Model X1 (F48) & X2 (F39)
Dates

 		 X1 (F48) - 10/2015-On
X2 (F39) - 03/2018-On

Body Type  SUV

Wiring
Pin Type 7 Pin
Socket Type    Flat Weatherlock
Fitting Time 30 to 60 Minutes
Brake Controller Connection     Yes
CAN-bus Connection Rear
Power Connection Rear

Controller Details
Controller JaegerCANtrol
Controller Part Number  321470
Bulb-Out Detection Yes
Trailer Detection Yes
Module Diagnostic Function Yes
PDC Deactivation  Automatic
CAN-bus       Yes
CAN-bus Coding Yes

Notes PIN 2 connection explanation. On BMW cars it is used as inputfor analogue indicator light/flasher light. Because BMW cars shutdown the CAN-busafter some time when the hazard lights are activated. The module would then stop with hazard-light on trailer, because of missing CAN-Bus. To avoid this,the analogue indicator light signal is connected on Pin 9 on BMW cars.

Pin 9 has also a hardware difference: The module cannotbecome awake when connecting 12V signal on it. On the other input it works. For BMW this is no problem, because when CN-Bus is sleeping and somebody is activating hazard-lights, the CAN-Bus becomes on for a short time. This time isenough to restart our module from sleep-mode.
